Construction

Many buildings stand on foundation soil that is affected by vibrations and can only be used once vibration isolation measures are in place. Disruptive noises can also spread throughout buildings, such as in the form of footfall noise. Our products and solutions involving Sylomer® and Sylodyn® reduce vibrations effectively while at the same time increasing the value of a property with the following benefits:

Fewer vibrations and less noise
Less airborne, structure-borne and footfall noise
Building offers a better quality of life and improved working conditions
Higher property values

BH&C Dynamics offers the following applications for Construction Sector:

STRUCTURAL DYNAMICS

BUILDING ACOUSTICS

Soundproofing insulation in structural dynamics means the elastic shielding of buildings and machine foundation bearings.

Soundproofing insulation in building acoustics means the bearing of floors, stairs, flanking, wall linings or pipes, etc.

Our solutions for structural dynamics include:

ELASTIC SHIELDING OF BUILDINGS

Urbanisation is increasing. Consequently, new buildings located on plots of land subject to vibrations are being constructed every day. The sources of disturbance are frequently nearby railway lines, roads or industrial complexes. Unless appropriate action is taken, such buildings are defenceless against these vibrations. With the sound control solutions made from Getzner’s Sylomer® and Sylodyn®, vibrations and secondary airborne noise – transmitted via elements such as ceilings and walls – are counteracted in a targeted manner.

Advantages of our material solutions:

Highly-effective protection for buildings against noise and vibrations
Reduction of sound radiation from external sources of disturbance – such as from train lines, urban railways and tramway lines.
Increase in market value of land and buildings
Higher quality living and working environments through elastic bearing
Materials with externally approved product properties

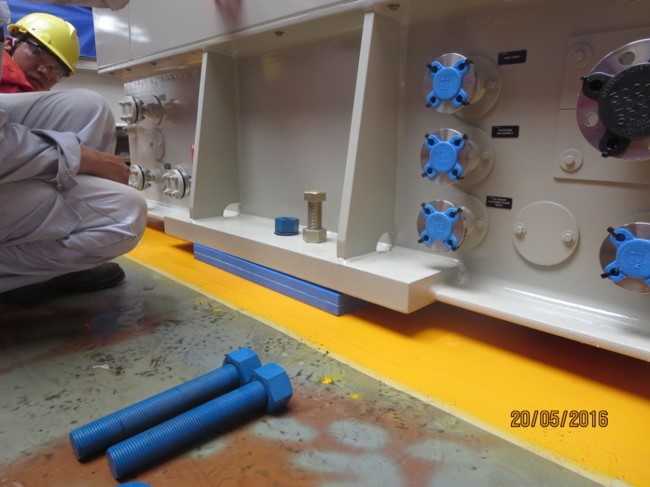

Machine foundation bearings

During operation, machines excite solid objects and machine components, generating oscillations. This in turn leads to secondary airborne noise or structure-borne noise, resulting in noise and vibrations. These vibrations have negative effects on the surrounding manufacturing and quality processes as well as the adjacent areas and environment.

We can provide a tailored vibration isolation solution for all types of rotating equipment and machine. The elastic bearings made from Getzner’s Sylomer® and Sylodyn® reduce emissions to an acceptable level and thereby ensure a more peaceful environment.

Advantages of our material solutions:

The long-term effectiveness of the materials is guaranteed over the entire service life of the machine
Properties can be calculated as a result of tailoring effectiveness
High cost-benefit effect
Load ranges from 0.5 t/m² to 600 t/m²
Highly effective at a low overall height and deflection
Materials with externally approved product properties

Our acoustic solutions include:

Floating Floor

Entering a room produces so-called impact noise, which is a special type of structure-borne noise. Impact noise radiates into the adjoining rooms and creates disruptive noises. This can become a problem – particularly in multifunctional buildings, such as commercial buildings – if a kitchen or a fitness centre is located above office premises, for example.

The elastic bearing of the floors over an Acoustic Floor Mat or the use of Acoustic Floor Blocks counteracts this problem. These soundproofing measures are made from the materials Sylomer®, Sylodamp® and Sylodyn® and offer many advantages.

Advantages

Excellent impact noise insulating effect for every type of floor construction (dry and wet screeds) Rate of impact noise reduction of up to 33 dB
Low installed height
Quick and easy to install
Stable material properties over the entire service life
Monitored quality
Approved for planners and developers for safety
Free from softeners and pollutants
Load capacity of up to 5t/m²

Fitness Centre

For operators, the location of a fitness centre plays a important role, but due to noise protection regulations, not every location can be selected for this purpose. This is why noise reduction measures are particularly important during the planning stages of a fitness studio. G-fit by Getzner is a product line based on high-tech elastomers, which are installed in the floor or adapted for fitness equipment. This means that they block disturbing noise and vibrations even before they arise.

Advantages & Benefits

Flexibility when it comes to the selection of a location, thanks to reduced sound transmission to adjoining floors
Long-lasting and maintenance-free for many years
Simple and efficient installation
Can be retrofitted in existing floors
Free from contaminants and ideal for areas with demanding health and safety requirements
No restrictions on usage times imposed by rental agreements
Value retention as a result of reduced wear on the building structure
Improved relationships with neighbours and letting agents

Elastic decoupling of internal structures

We offer effective Getzner’s products and solutions for mounting ceilings and wall linings. Elastic ceiling hangers reduce the sound transmission from ceilings. Along with the Sylomer® products, Isotop elements (particular combinations of steel springs and Sylomer® bearings) are also used for more effective sound reduction.

Sound decoupling of wall linings works in a similar way: in order to reduce sound transmission into or out of adjacent rooms, wall linings are frequently used in the drywall. The sound radiation is also significantly reduced here due to an elastic attachment.

The combination of suspended ceilings, wall linings and floating floor structures creates what is known as room-in-room construction. For areas with particularly stringent acoustic requirements. The acoustic products plus Sylomer® and Isotop® elements prevent sound bridges at the attachment points. This means that the transmission of airborne and impact noise can be reduced to a minimum – even if a sound control measure is not technically feasible in the adjacent rooms.

Advantages

Customised products to meet different building acoustics requirements
Targeted reduction of noise for a high standard of comfort
Increase in the quality of life and working conditions due to the highly effective insulation provided by polyurethane bearings
Sound control adds value to residential apartments and buildings
Soundproofing insulation from Getzner is made to last and has proven to be an advanced and sustainable solution
A high degree of planning reliability thanks to proven effectiveness

Elastic decoupling of lift systems

Lifts are used to transport individuals or loads between two or more levels in a moving cabin. During operation, the starting, stopping and general movement of the cabin generates vibrations that are transmitted to the structure of the building and perceived as structure-borne noise.

The bearing of the drive and cables in particular using Sylomer® and double elastic Isotop® SE-DE elements can achieve excellent decoupling results. Solutions with Isotop® SE-DE meet the requirements of bearing class EL3 in accordance with VDI 2566. Most solutions are implemented with natural frequencies of between 10 and 15 Hz. It is highly recommended that appropriate decoupling measures are considered right from the start, during the planning and design phase of the lift system.

Advantages

Maintenance-free bearing
Elements for different installation heights and load ranges
More than 40 years of experience with lift builders
